Introduction

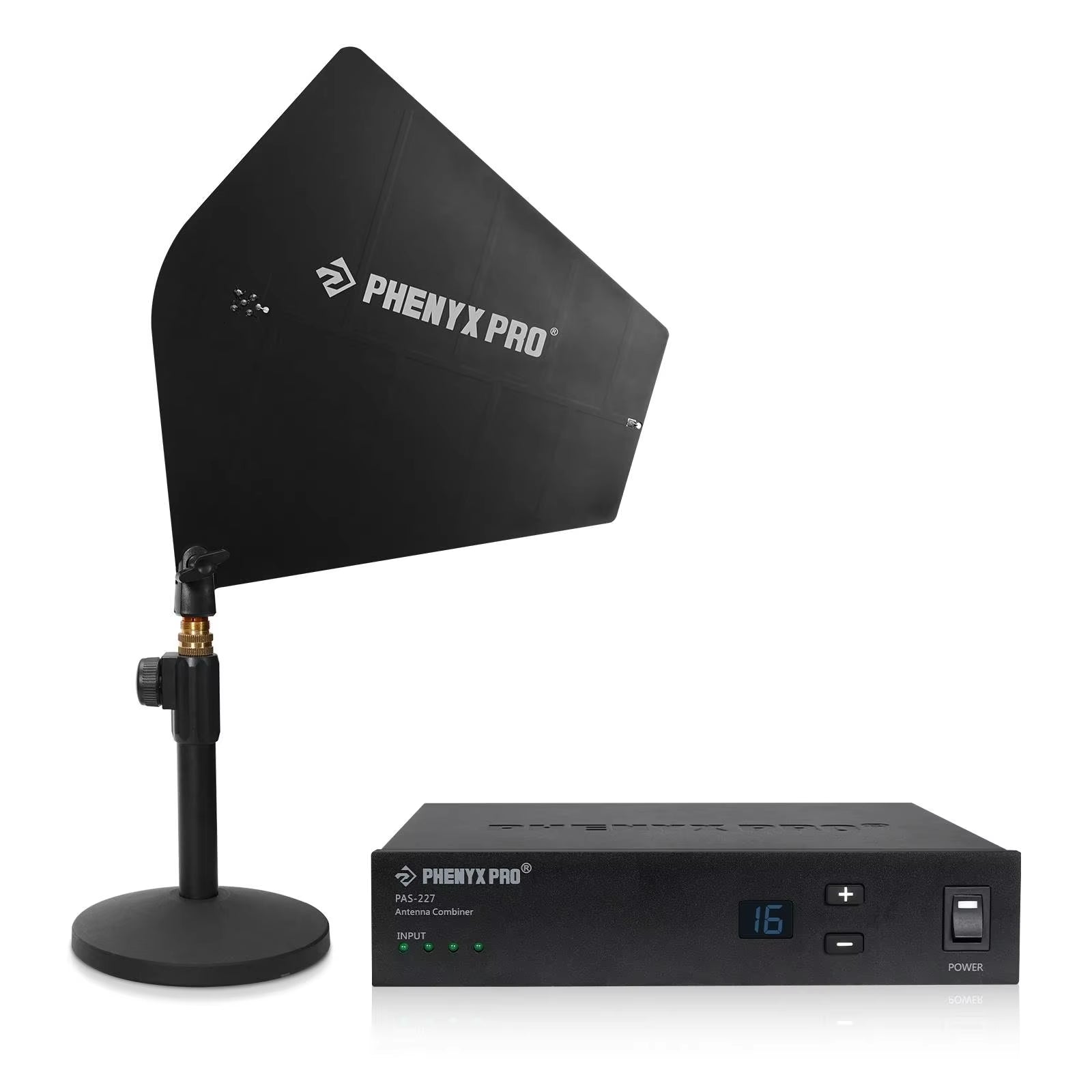

Designed to tackle complex IEM setups, the PAS-227X antenna combiner brings order to the chaos. By seamlessly merging up to four IEM signals into a single output, it creates a cleaner RF environment. Its directional antenna paddles allow flexible placement to find the ideal spot for signal transmission. Whether navigating crowded RF conditions or working in large venues, the PAS-227X truly shines.
Features

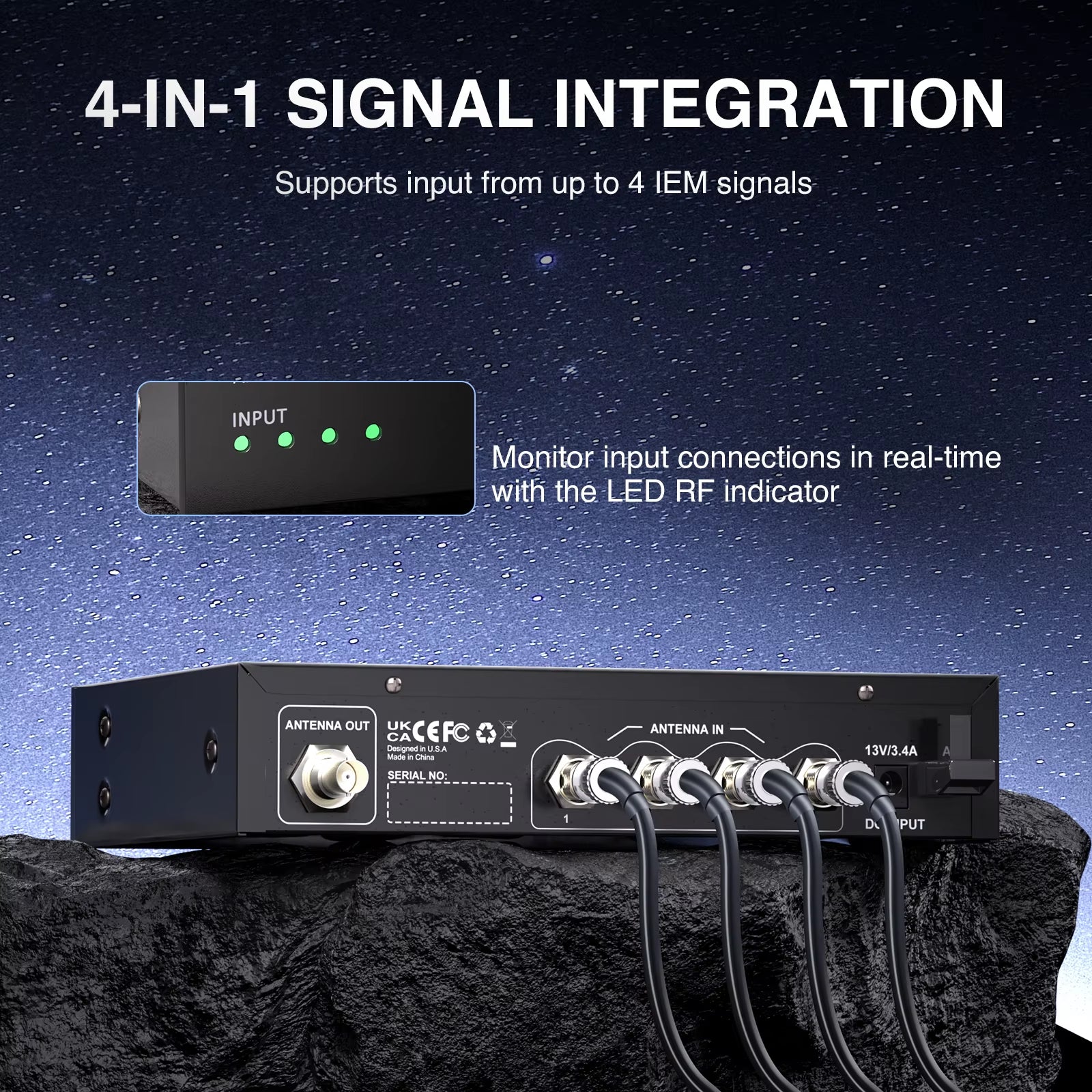

- Supports four antenna inputs, seamlessly combining up to four wireless IEM system signals into a single antenna output.

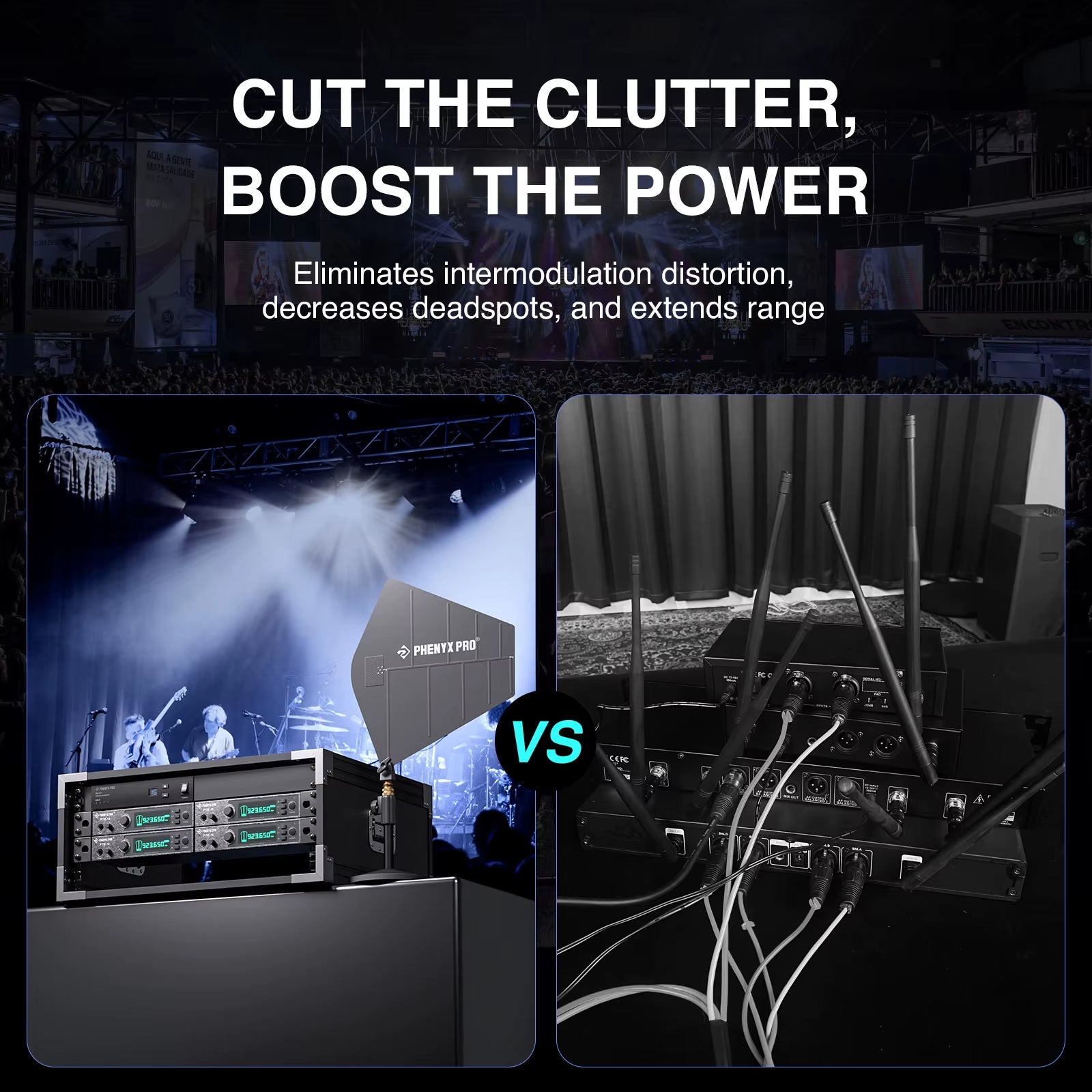

- Effectively reduces intermodulation distortion (IMD) and noise, improving the RF environment, minimizing dead spots, and extending effective transmission range.
- Offers 16 levels of gain adjustment, with a maximum boost of +6dB, adapting to various environmental needs.
- In crowded RF areas, gain can be reduced to prevent overload, while in larger spaces, gain can be increased to compensate for signal loss.

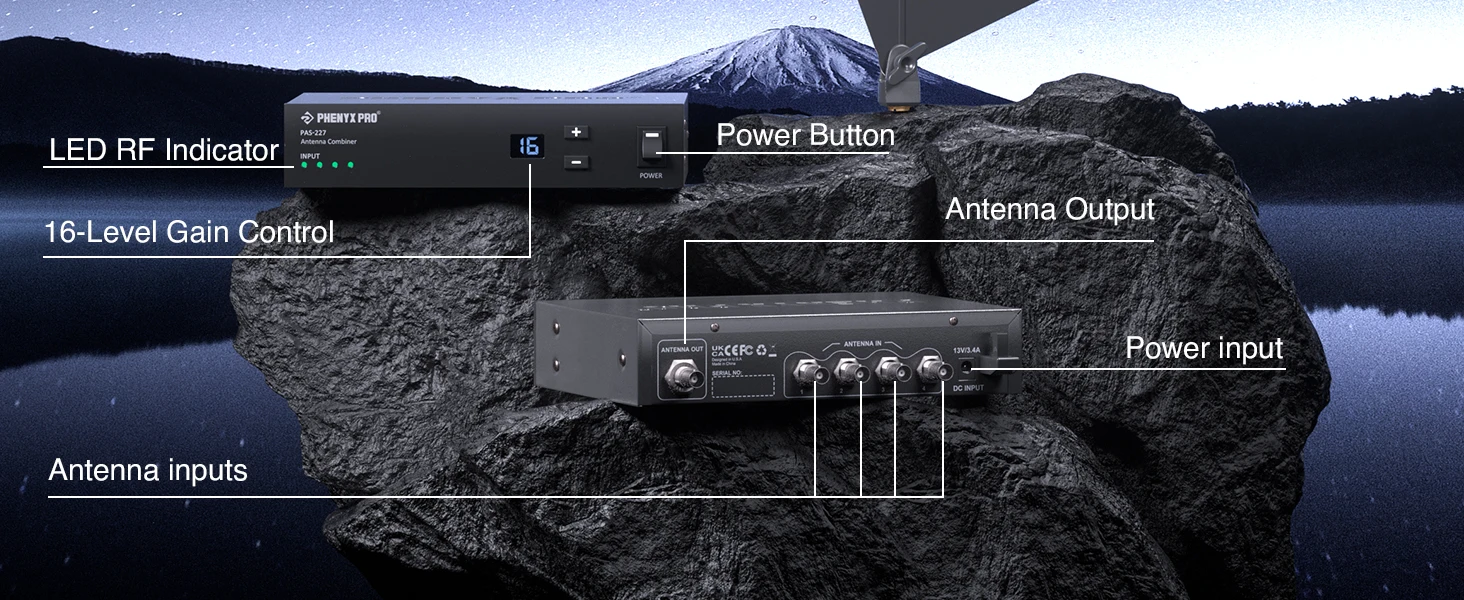

- The LCD display shows the current gain level for easy and precise adjustment.
- Supports a wide frequency range of 460-970MHz, making it compatible with nearly all major IEM brands and models.
- Ideal for various setups, including stage performances, large conferences, and outdoor events.
- LED indicators provide real-time signal monitoring for easy operation.

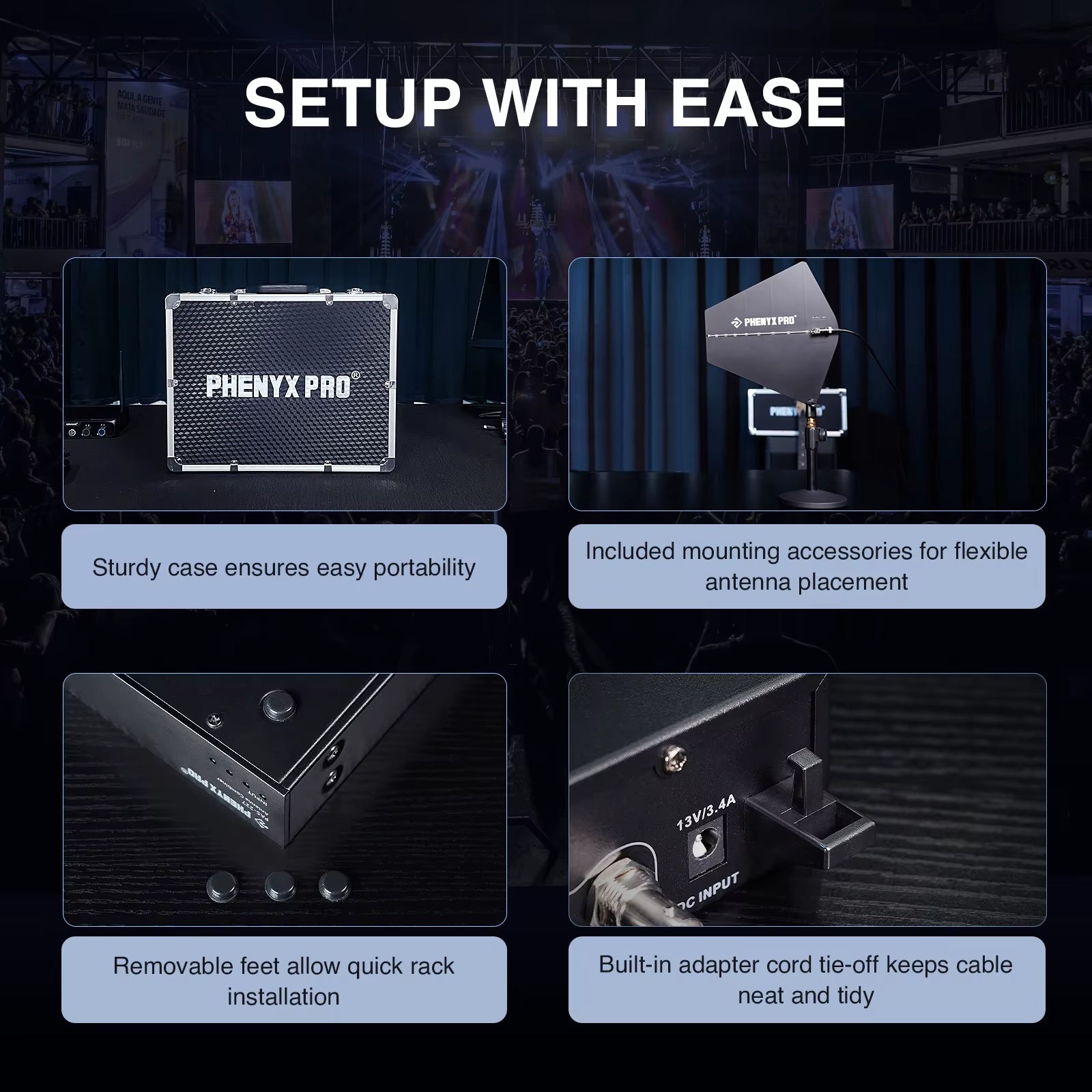

- Removable feet for quick rack installation, saving valuable space.
- Includes an antenna mounting rod and plate for quick setup, with an adapter cord tie-off for organized cable management.
- Comes with a durable carrying case for transporting the system securely.
Specification
Combiner
Frequency Range: 450-970 MHz
Input Connector: BNC x 4
Output Connector: BNC x 1
Gain: 0-6 dB
Maximum Input Power: 20 dBm (100 mW)
Dimensions: 212 x 168 x 43 mm
Power Input: DC 12V/2A
Antenna
Input Connector: BNC x 1
Gain: 3 dB

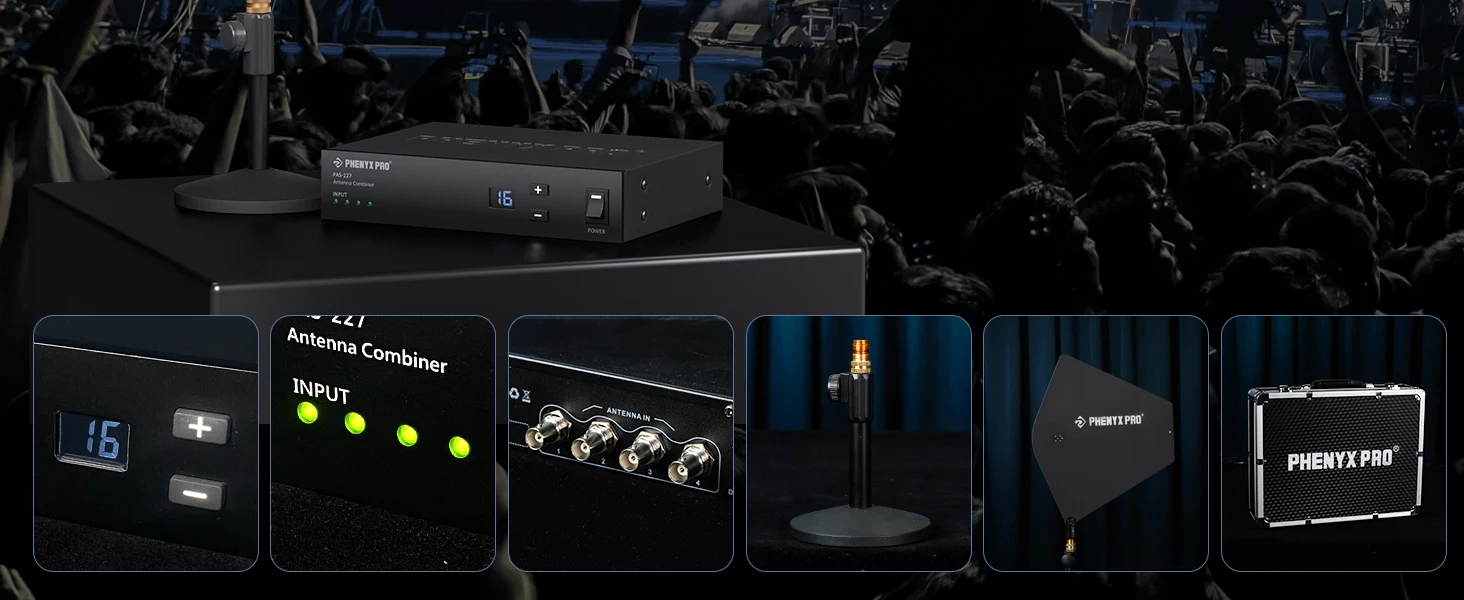

Packing Included
1 x Antenna Combiner
1 x Paddle Antenna
1 x Antenna Mounting Rod
1 x Antenna Mounting Plate
4 x BNC Jumper Cables
1 x BNC Coaxial Cable
1 x Power Adapter
1 x Carrying Case
1 x User Manual
