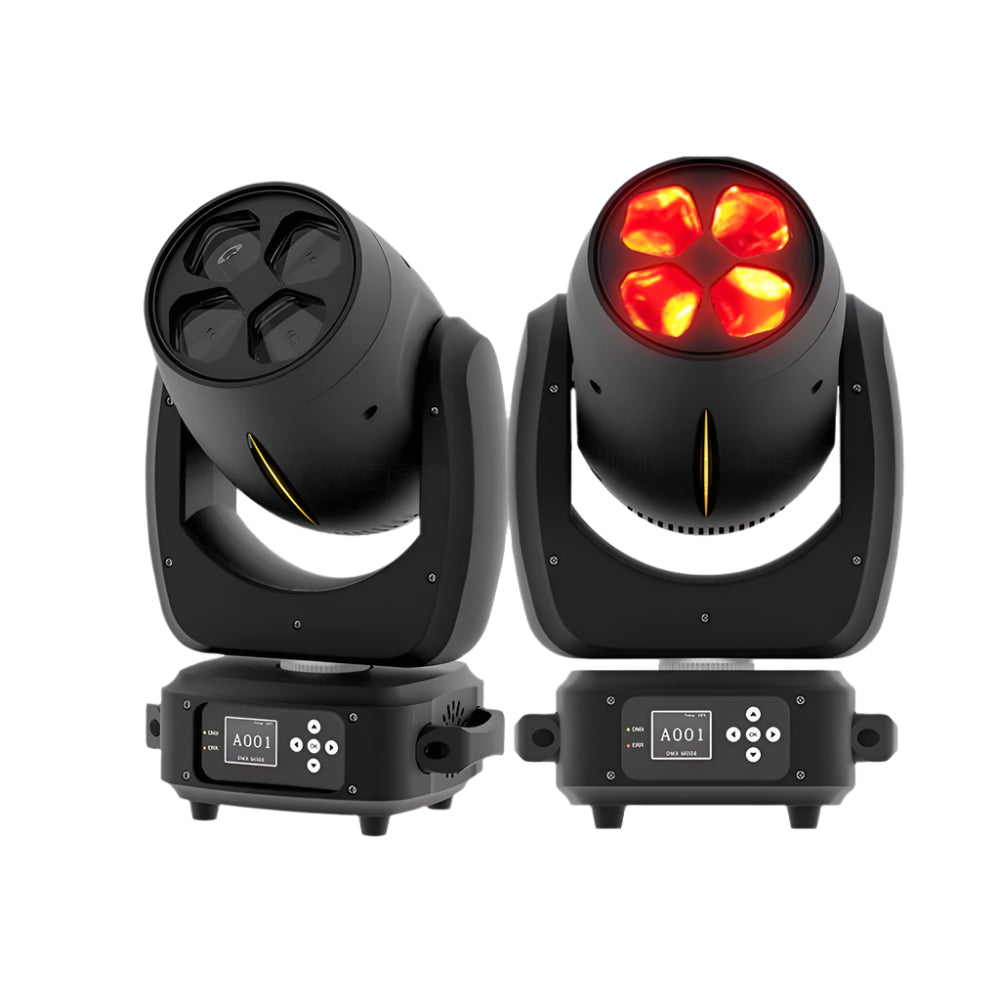

LED Zoom&Beam&Wash Small Bees Eyes
4x40W RGBW Light
The light source consists of 4x40W RGBW four color LEDs,
Create a uniform color mixing system and rainbow effect, easily creating a fast and powerful beam of light, adding dynamism to the stage.
Product Features
Multiple channel modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
|
-Electrical specification and connections |
|
|
Power supply: |
200W electronic auto-ranging |
|
Input voltage range: |
100-240 V, 50/60 Hz |
|
Power in connector: |
Neutrik powerCON |
|
Signal input/output: |
3-pinXLR head socket |
|
-Source |
|
|
Light source type: |
LED 4X40W RGBW mixing color |
|
Colour temperature output: |
Linear CTO 2500-8000K |
|
LED life expectancy: |
20000 hours |
|
-Optical system |
|
|
Zoom: |
3x efficient zoom optical system |
|
Moving head range: |
Pan:450° Tilt：210° |
|
Zoom angle: |
2.5°-75° |
|
Dimmer: |
0~100% linear dimming |
|
Lens diameter: |
129 mm |
|
-Control and programming |
|
|
Protocols: |
DMX512 |
|
DMX Channel Mode： |
16channel |
|
Feature： |
Auto mode ,sound mode,manual programming scenarios |
|
-Mechanical specification |
|
|
Housing : |
High temperature resistant and flame retardant plastic housing |
|
Product size： |
24x18x41 cm / 9.45x7.09x16.14 inch |
|
Product weight: |
5.92kg |
|
Package size: |
43x32x31cm / 16.93x12.60x12.20inch |
|
Package weight: |
7.28 kg |
|
Operating temperature: |
-20~60℃ |
|
Ingress protection rating: |
IP20 |
Beam Angle
2.5 ° beam angle - 75 °wash angle
Optical Lens Display
Clockwise and counterclockwise 360 °rotation
Integrating Powerful Beam
And Dyeing Functions
A linear focusing system with a beam angle of 2.5 ° -75 °, multiple speed strobe effects, and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects, fully adapting to different stage application needs
Focusing Effect
Adjust lighting through the lens to enhance the atmosphere of the scene
Light Spot Effect
Multiple colors transform and interweave, creating a vibrant atmosphere of light and shadow
Multiple Effects
The changes in color are dazzling and dazzling, and the lighting turns the air into
a fairy tale like beauty, making it unforgettable to leave
Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
Introduction To Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures
Built-in lamp operation status sensing and monitoring system, which can check the operation status of the lamp at any time for easy parameter adjustment
Function Introduction
DMX512 signal/power cord interface
Suspension Installation Structure
Reserve installation position and quick lock for safety rope

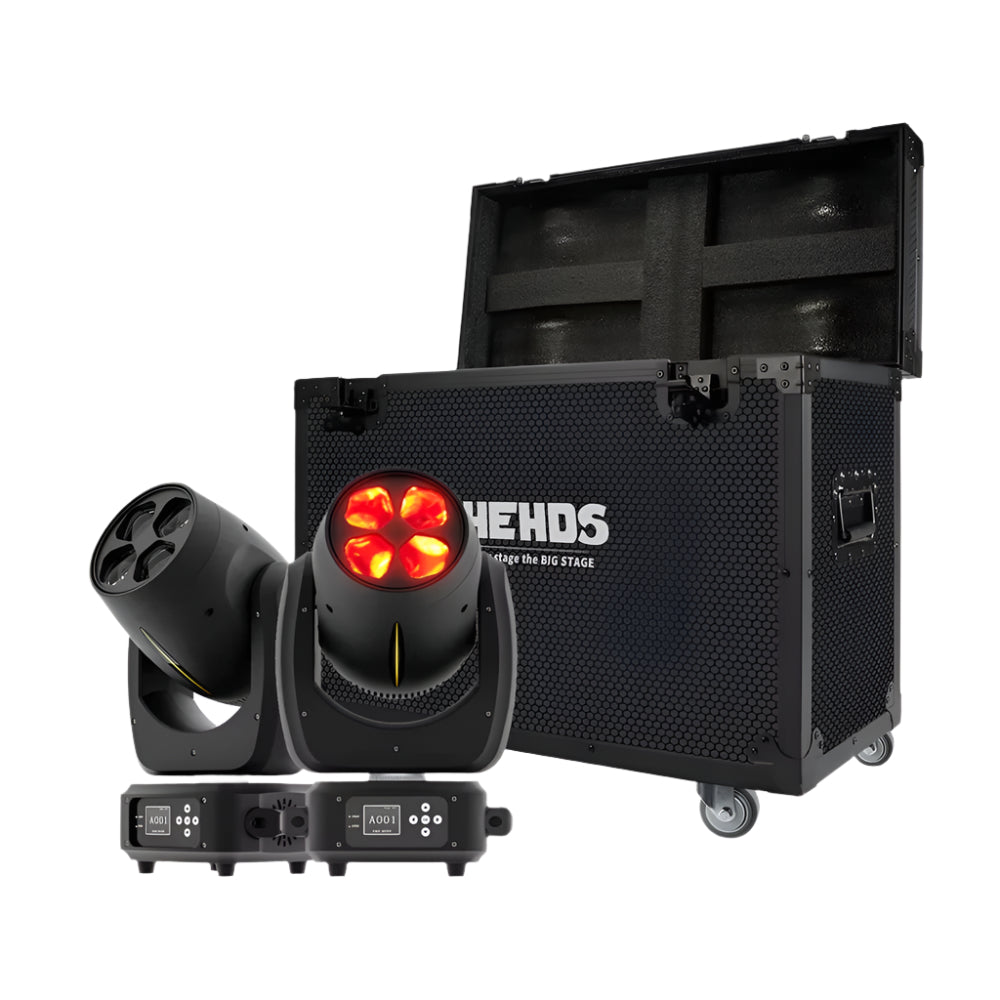

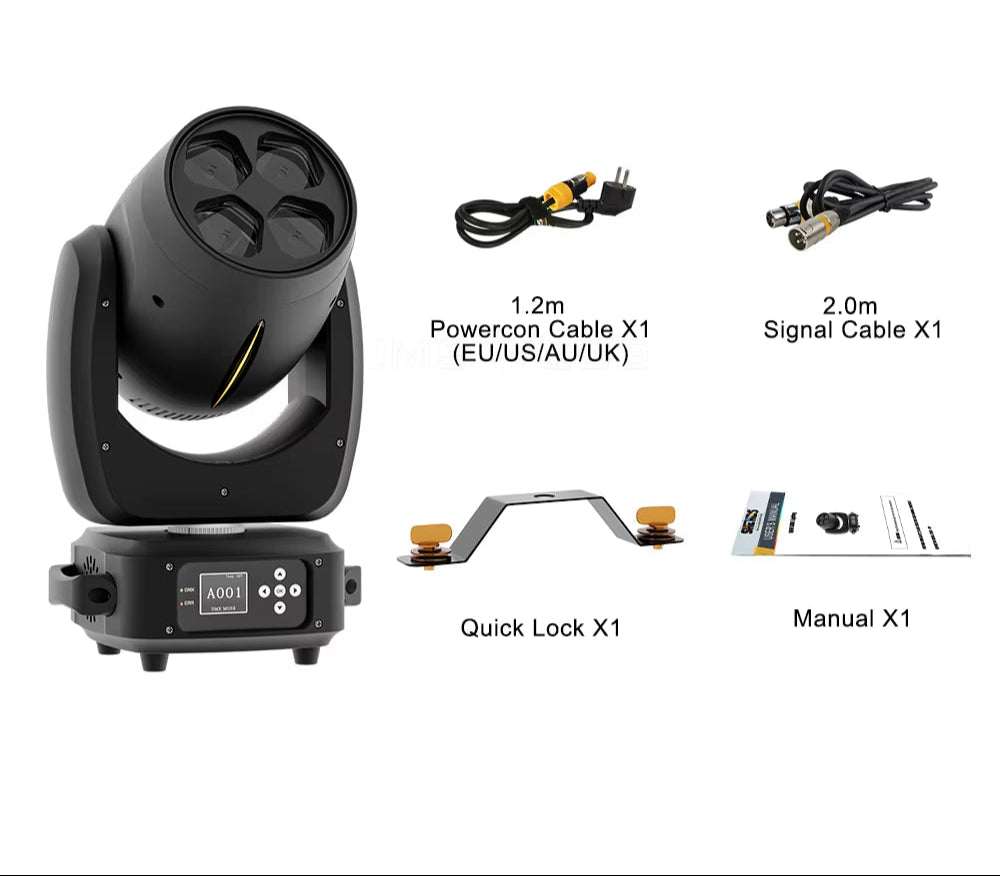

Packing List
Each process undergoes strict verification
Every part is carefully selected
