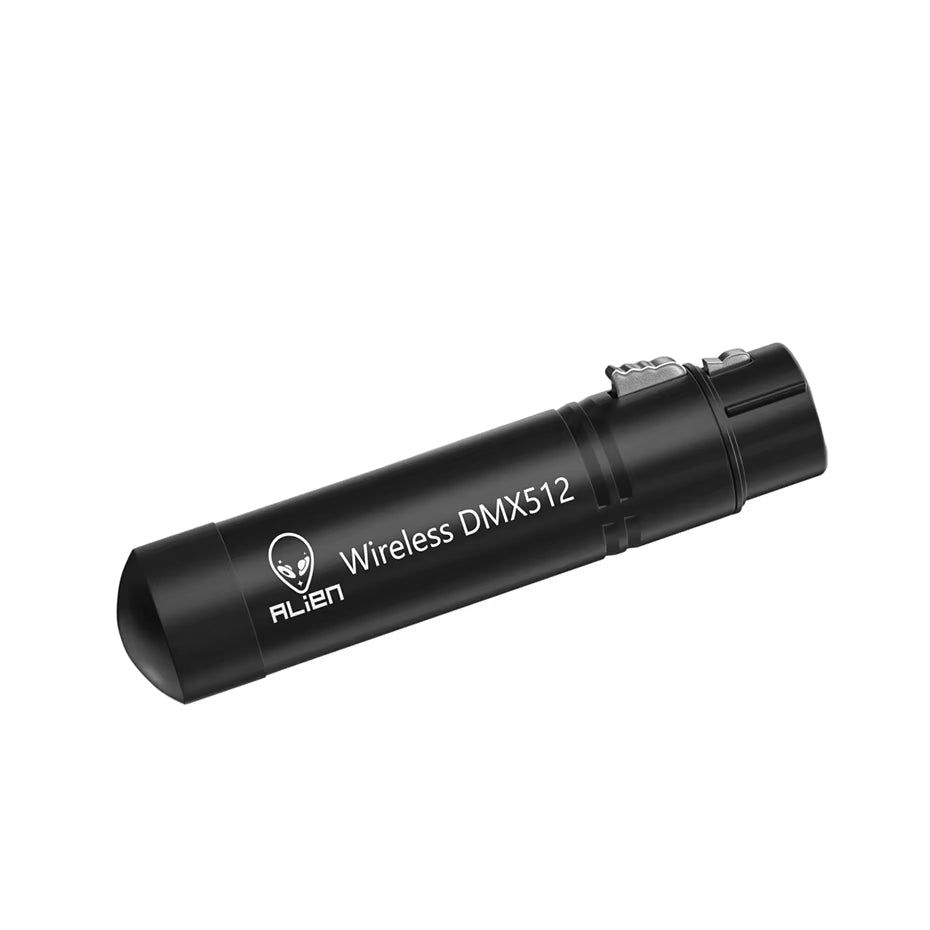

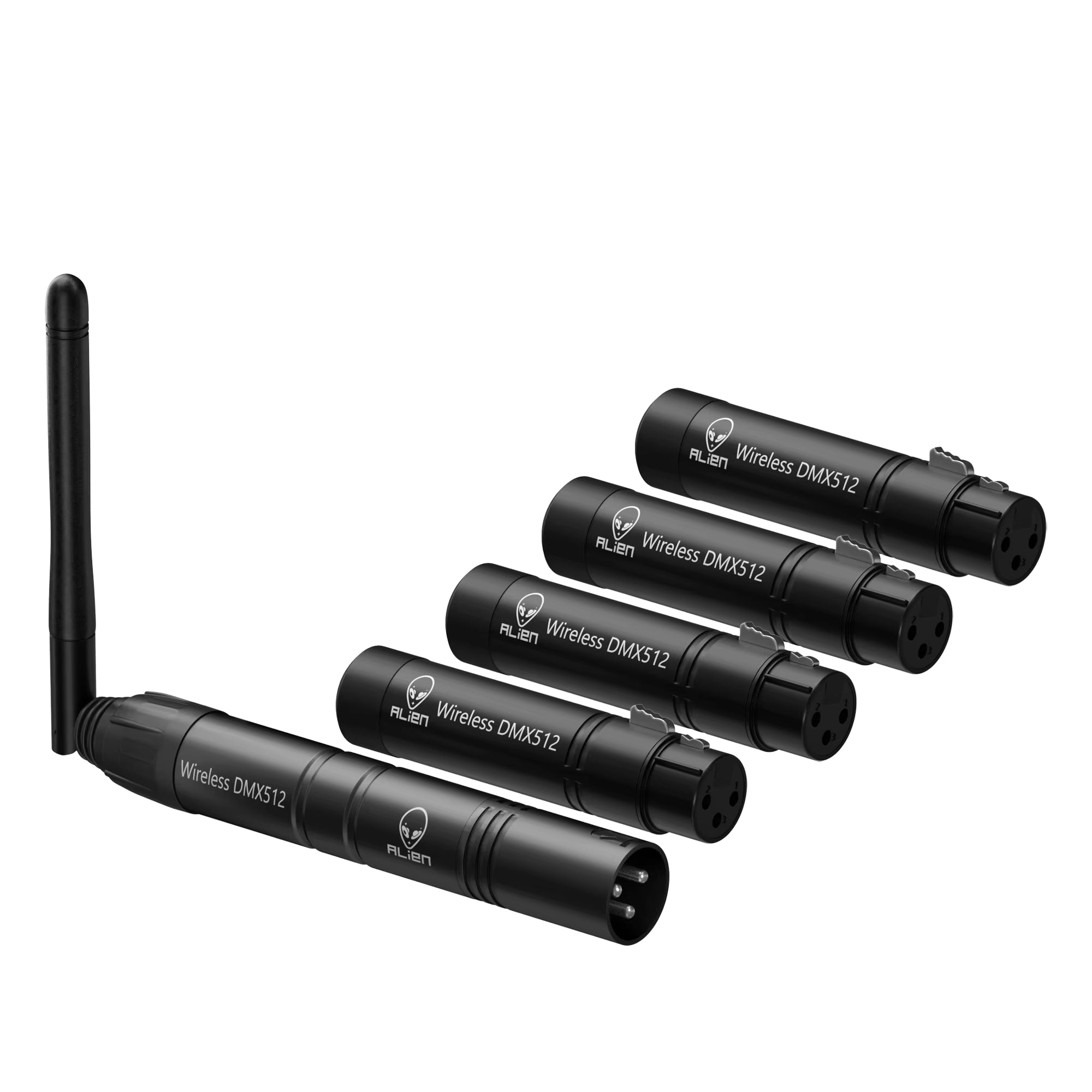

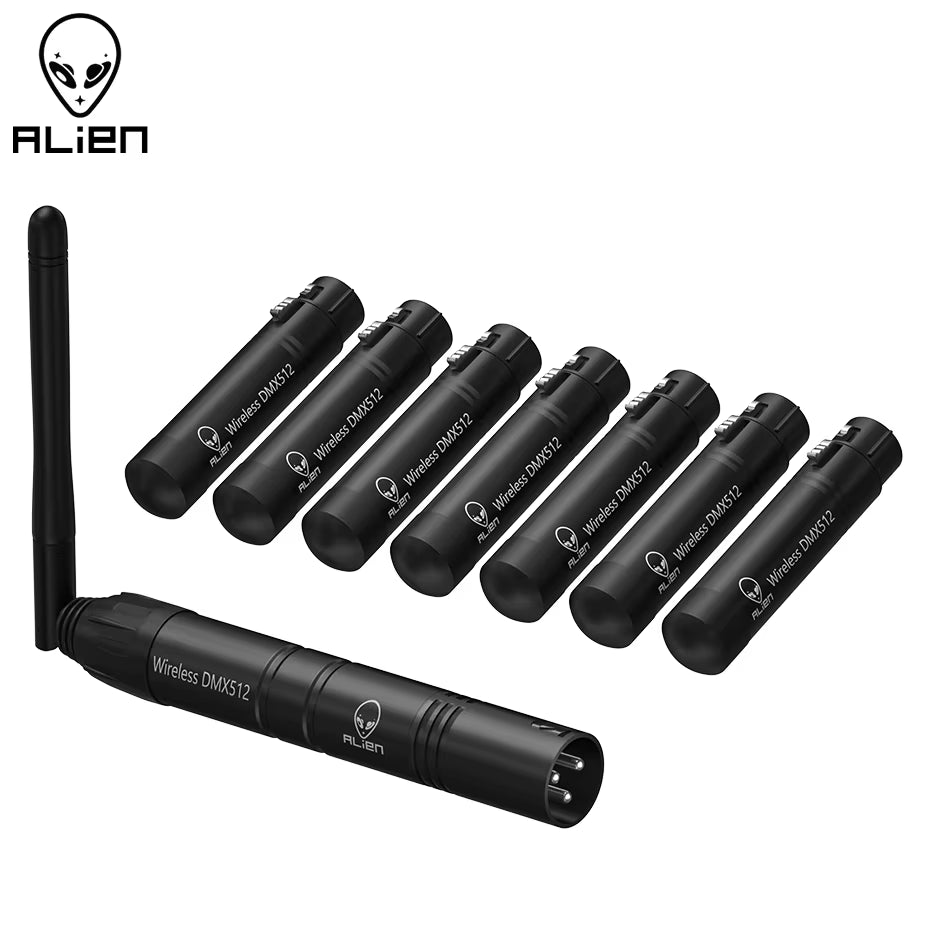

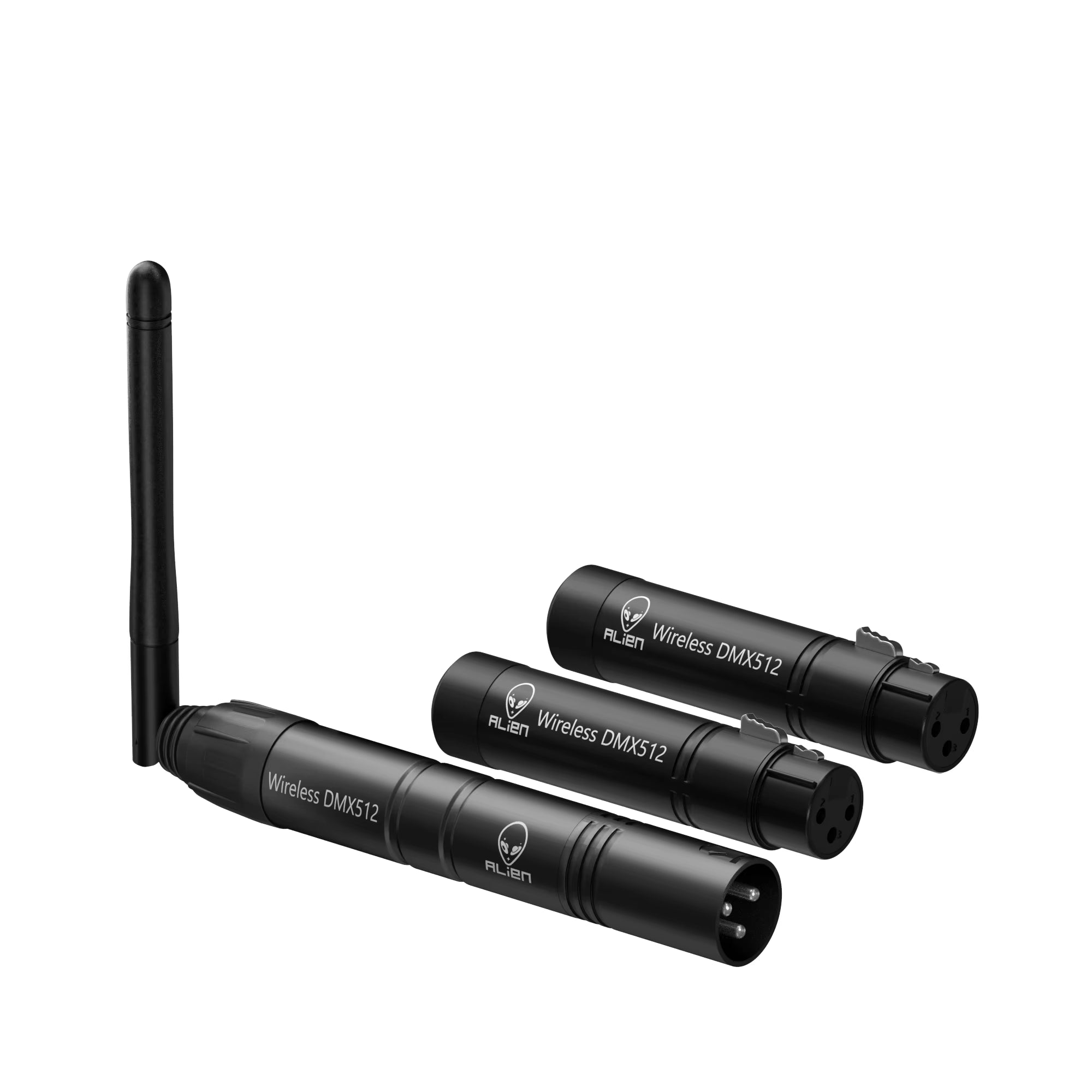

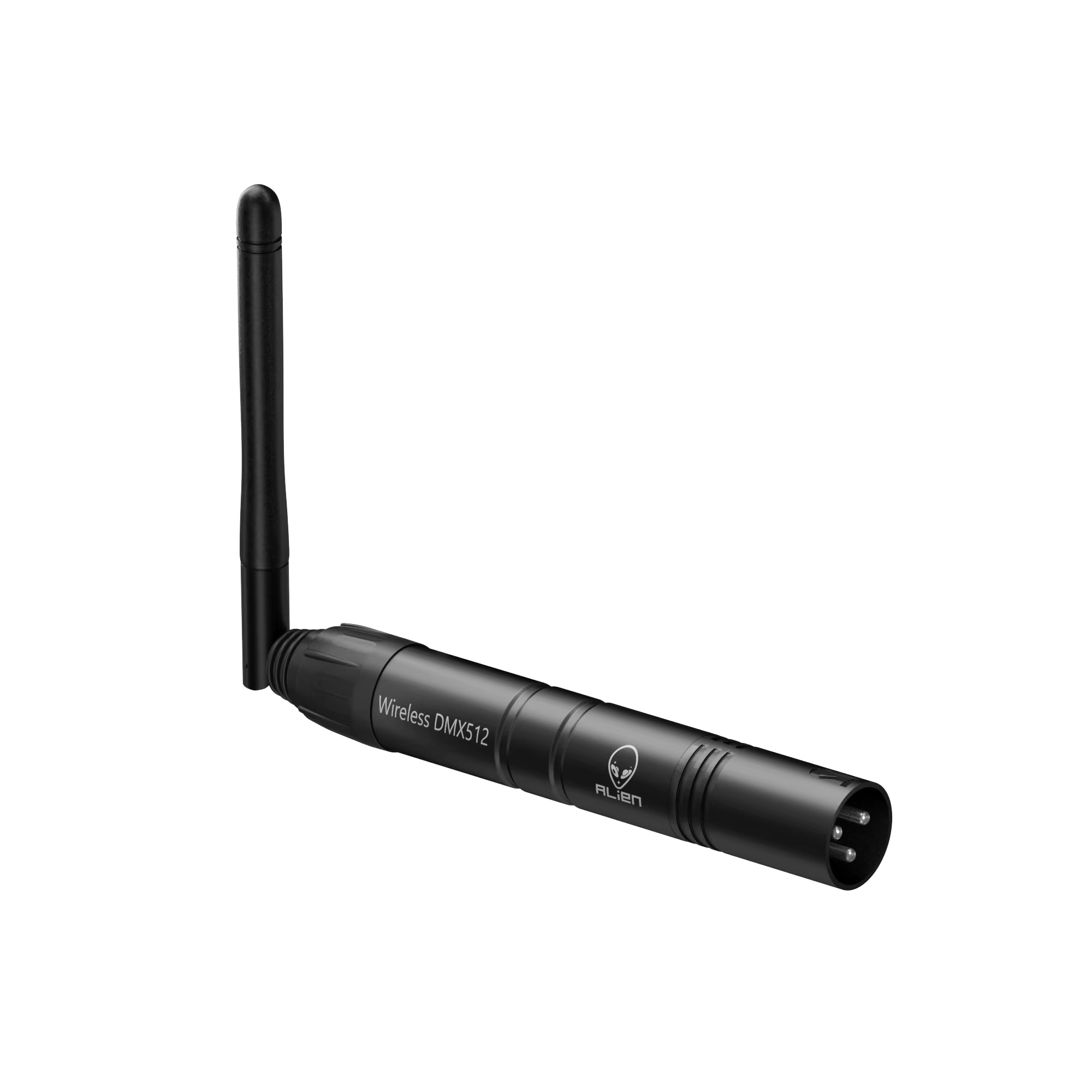

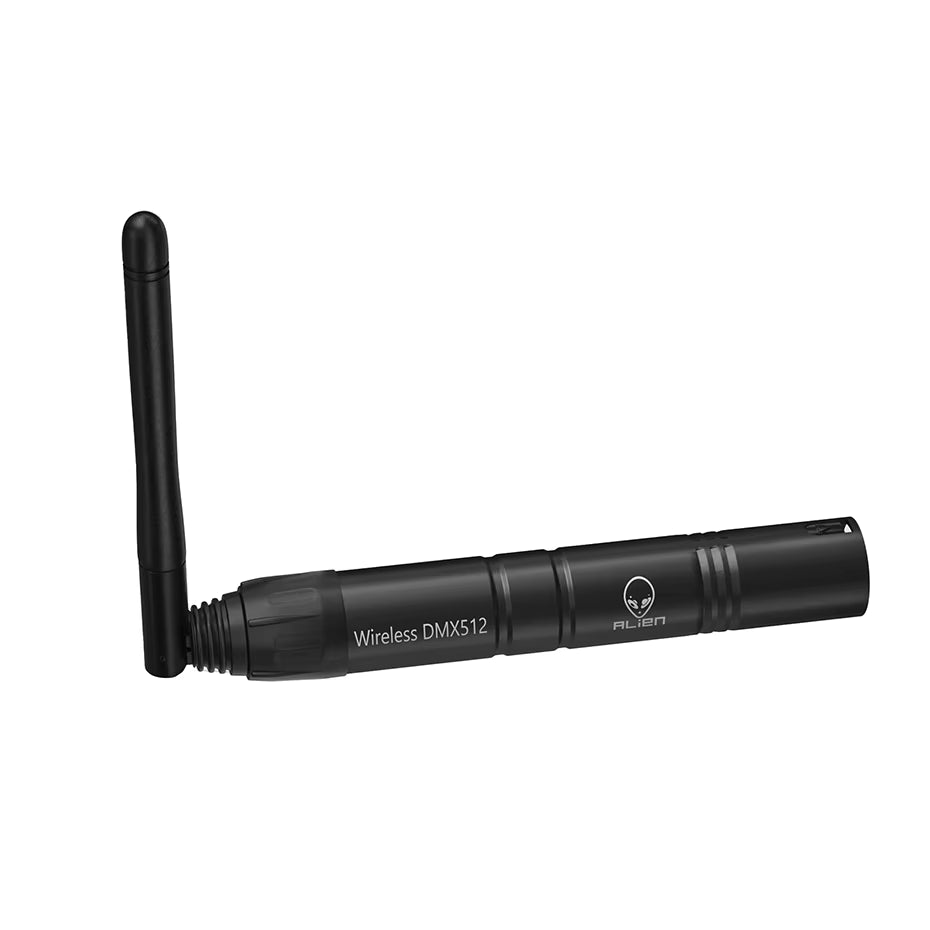

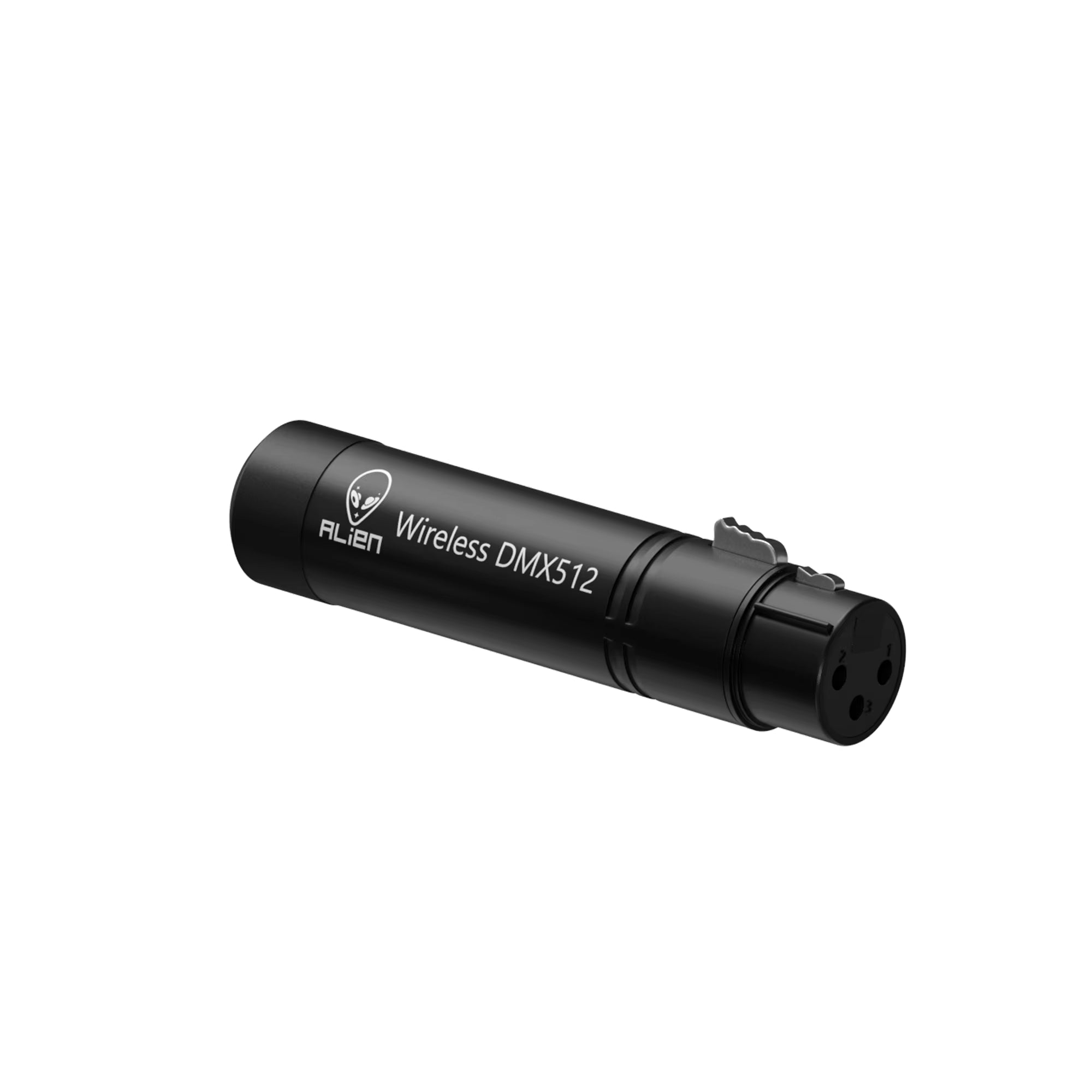

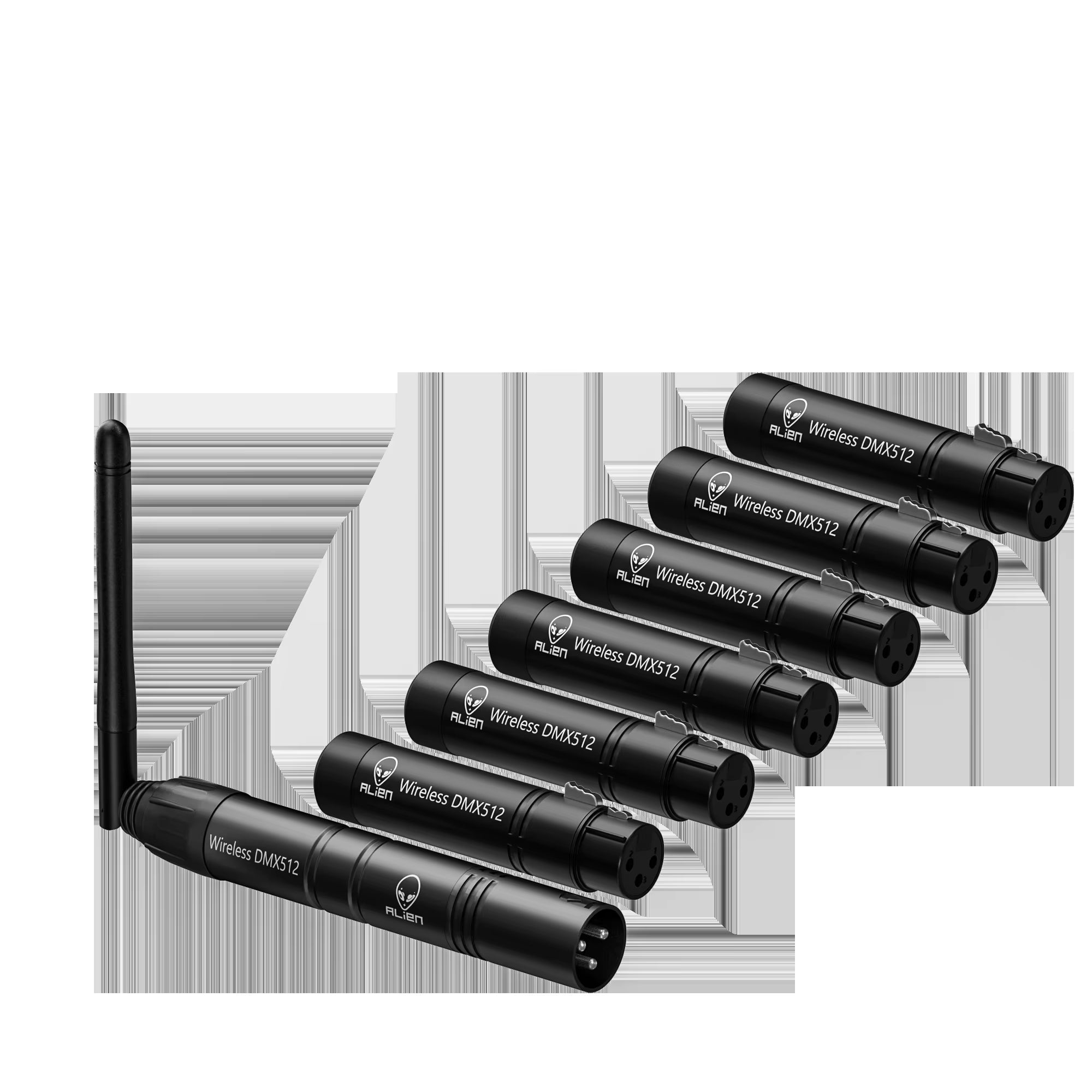

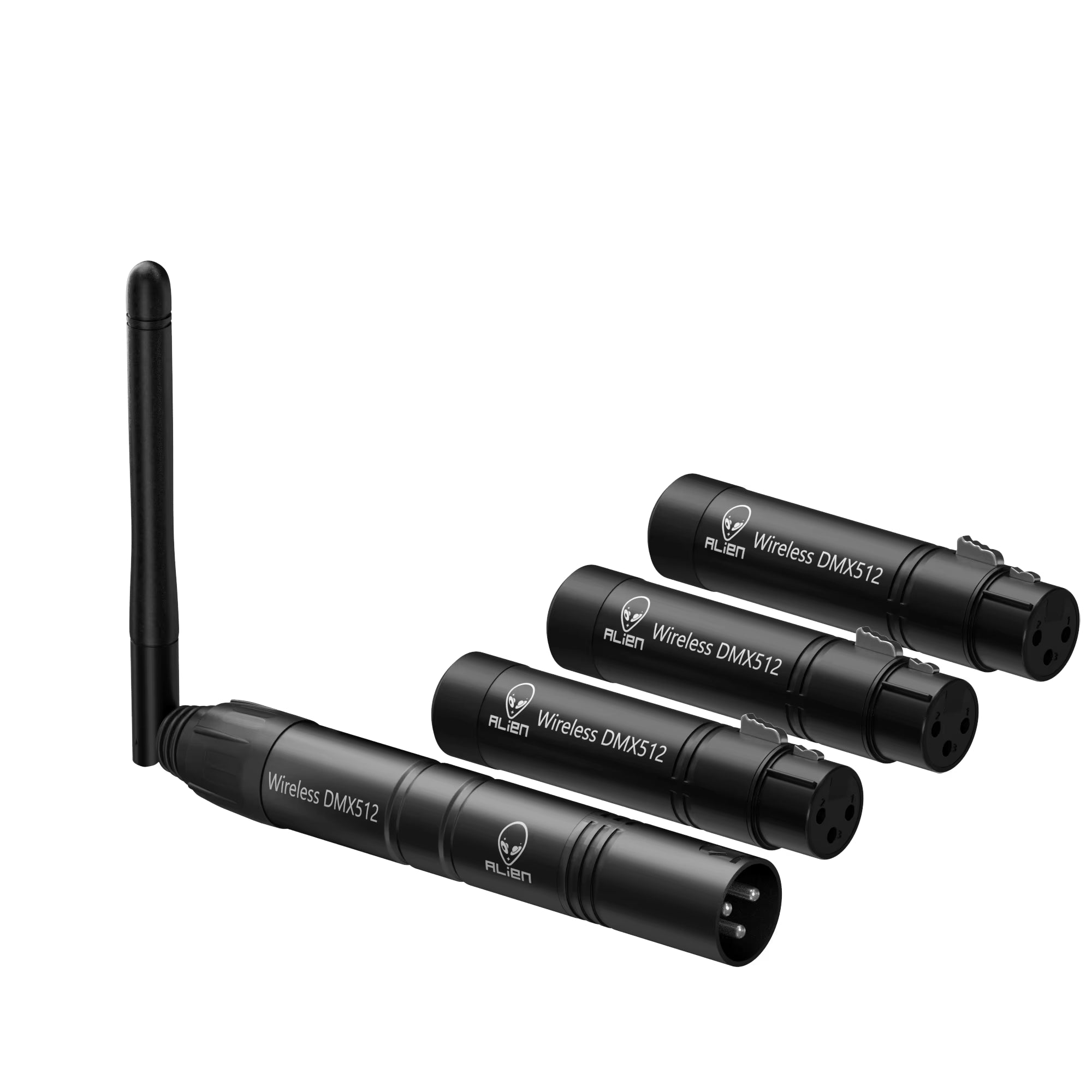

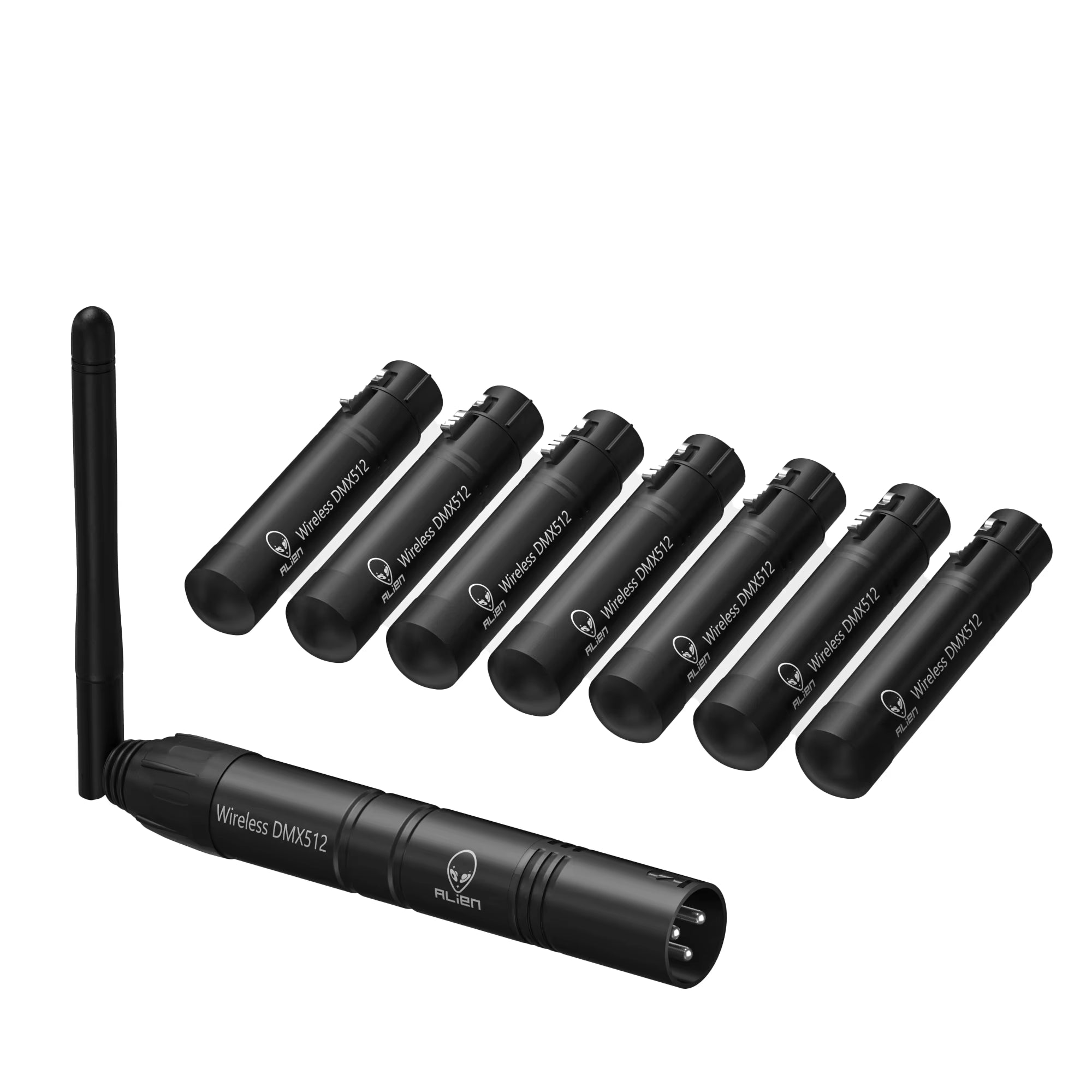

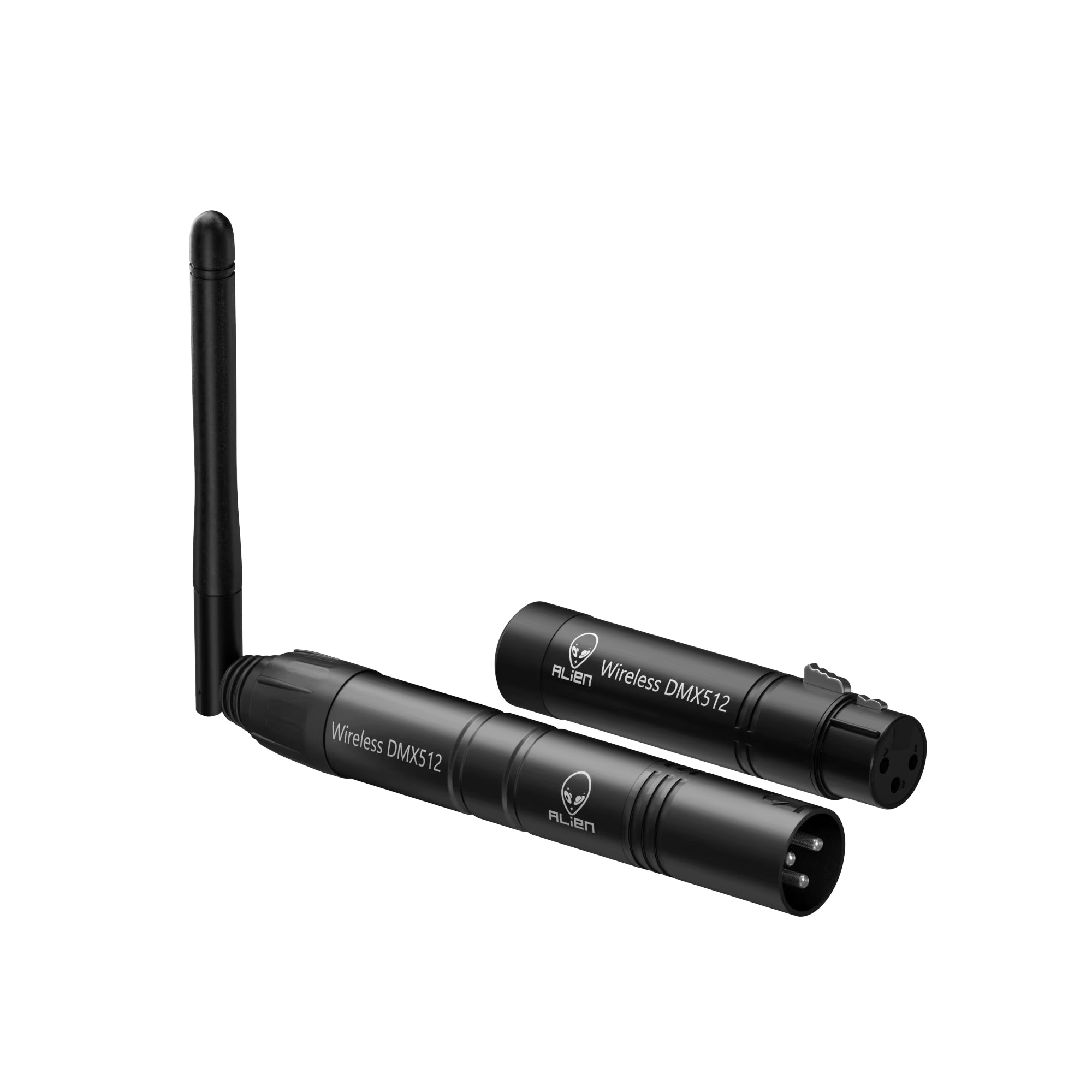

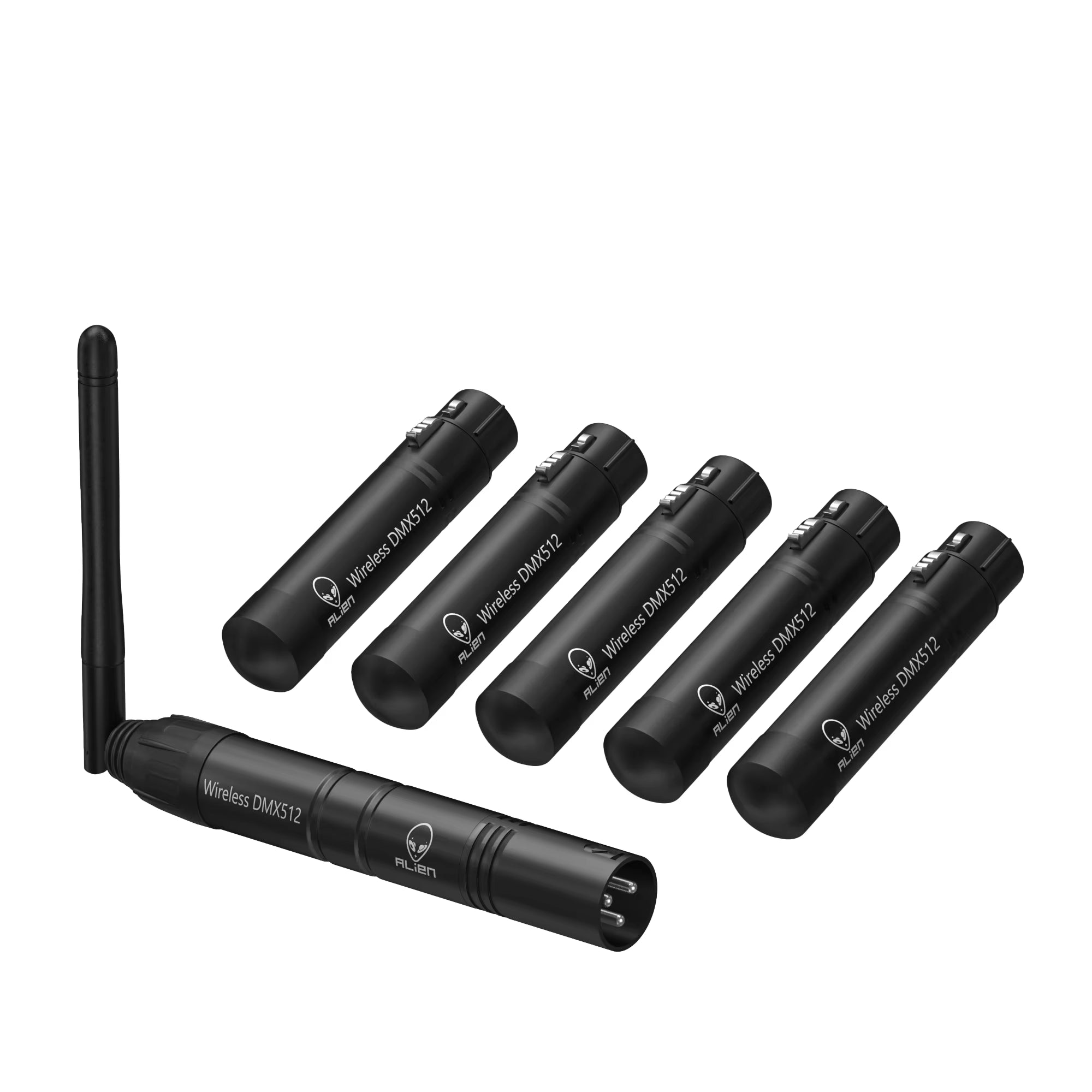

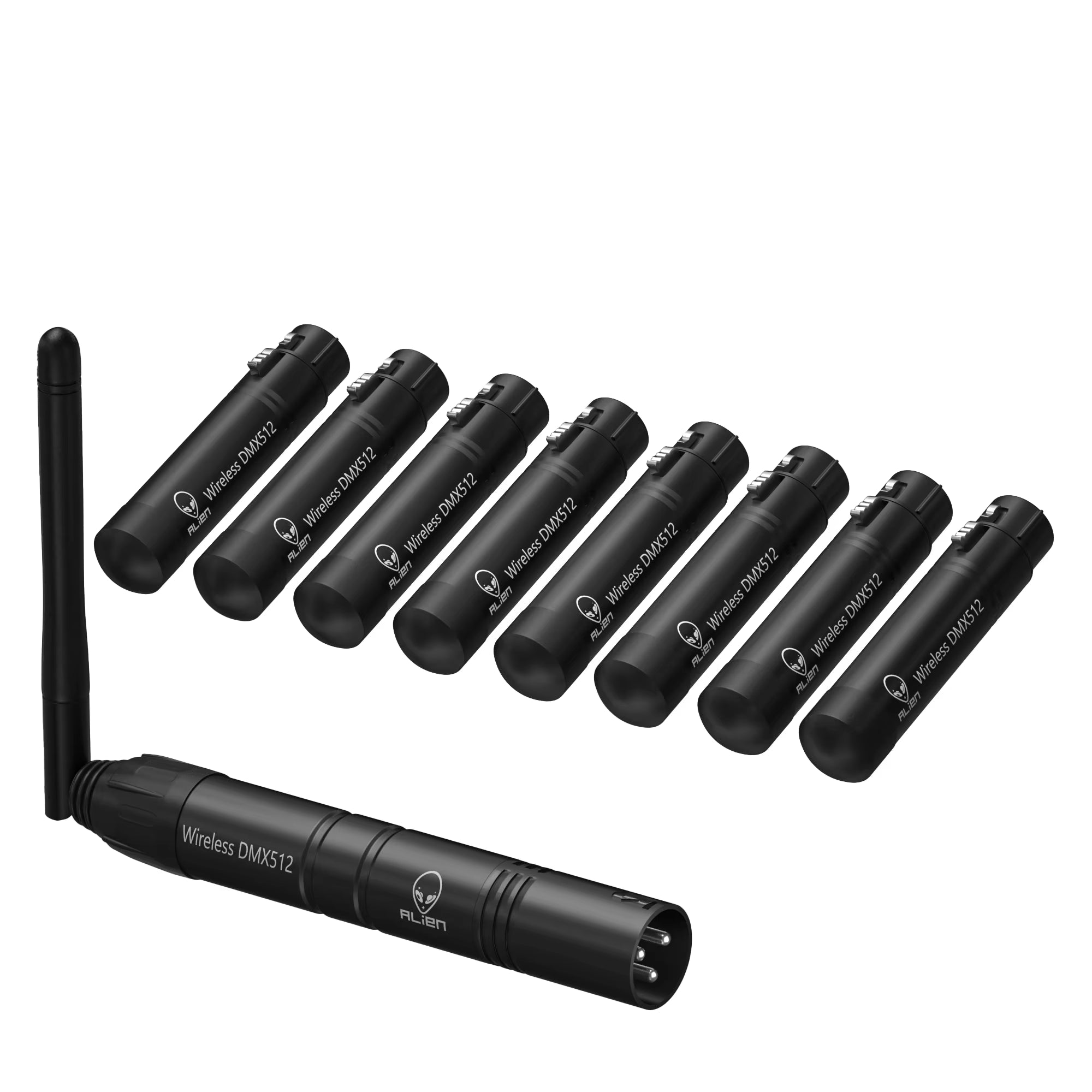

-2.4G wireless DMX512 R/T
-126 channels jumping frequency automatically, high anti-jamming ability, to ensure works reliability
-7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
-Each other in the same place (Tricolor LED displaying Indicators)

Specification:

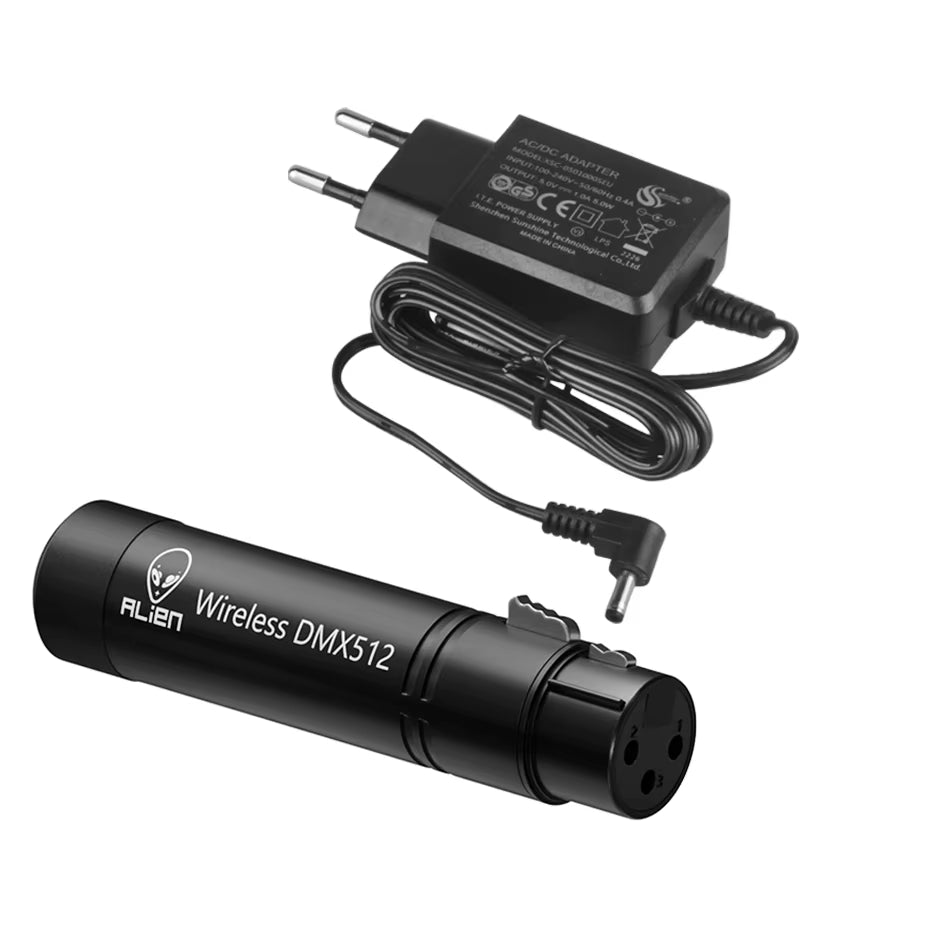

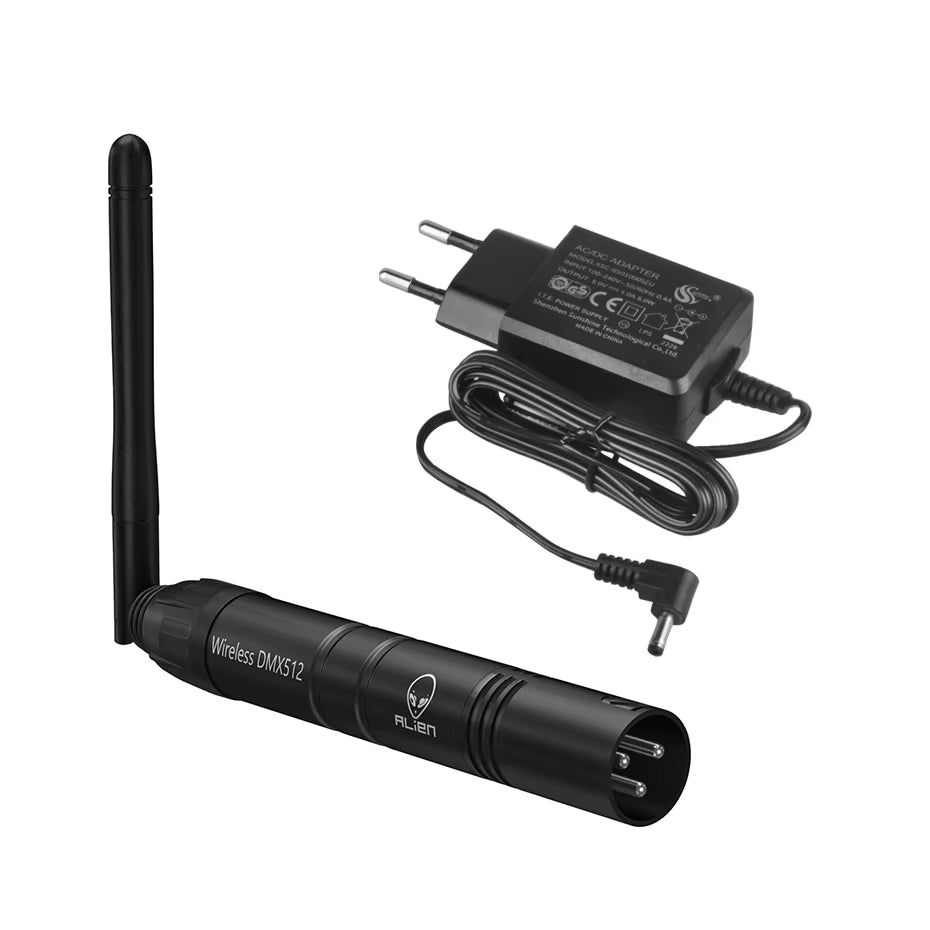

Input voltage: DC 5V 0.5A
Communication distance: 300M (visible distance)
Work frequency section: 2.4G ISM, 126 channels, frequency section
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface:RS485
Operating temperature: -40 ~ 85 Celsius
Storage Temperature: -65 ~ 150 Celsius
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Operating manual:

ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
1) Press momentary switch above the side led indicator to indicate ID setting.
2) Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color IDcode.
3) Working condition:
LED constant lit up No DMX or wireless signal.
Red LED flash: Transmitting.
Green LED flash: Receiving
4) RF frequency 2.400 - 2.525G, total 126 channels, it's searching automatically.
5) ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)
